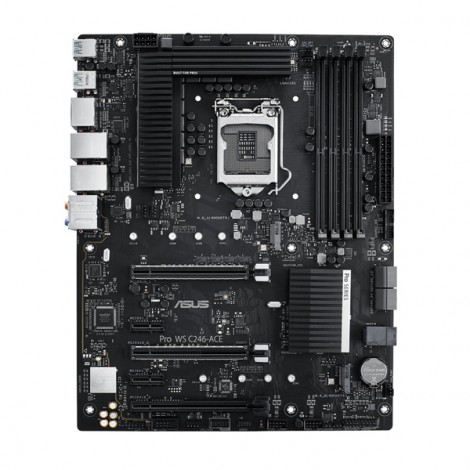

Mainboard Server ASUS WS PRO-C246-ACE

Intel® Socket 1151 For Xeon® E-2200/E-2100 family 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC Memory *1 Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC Memory *1 Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Build in Intel® C246

1151

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x2 mode) 2 x PCIe 3.0/2.0 x1

Intel® C246 Chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A, 2 at mid-board) Intel® C246 Chipset : 6 x USB 2.0 port(s) Intel® C246 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)

1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 3 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 Type-C 4 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s)

1 x AAFP connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) () 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x U.2 connector 1 x System panel connector 1 x COM port header 1 x AIO PUMP Header

Intel® I210-AT, 1 x Gigabit LAN Controller(s) Intel® I219-LM , 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility ASUS LAN Guard

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 – Power pre-regulator reduces power input noise to ensure consistent performance – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking Audio Feature : – Optical S/PDIF out port(s) at back panel – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Windows® 10 64-bit

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

36 tháng

ASUS
