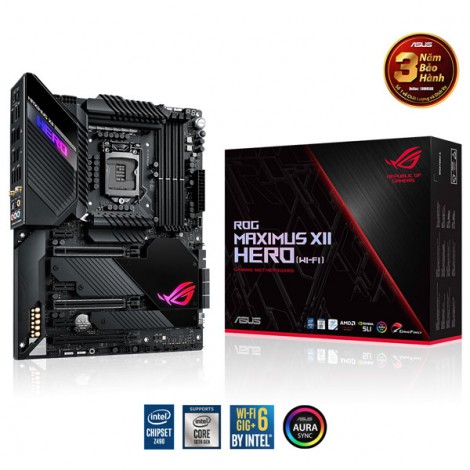

Mainboard ASUS ROG MAXIMUS XII HERO (WI-FI)

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III

Intel® Z490

Rear USB Port ( Total 10 ) 4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)

1 x Marvell® AQtion AQC111C 5Gb Ethernet 1 x Intel® I219-V 1Gb Ethernet 1 x HDMI 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 3 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button

Intel® Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) hỗ trợ 1024QAM / OFDMA / MU-MIMO Hỗ trợ tốc độ dữ liệu tối đa 2,4 GHz Hỗ trợ tần số băng tần kép 2,4 / 5 GHz Hỗ trợ băng thông kênh: HT20 / HT40 / HT80 / HT160 Hỗ trợ giao diện CNVI

Intel® I219-V 1Gb Ethernet Marvell® AQtion AQC111C 5Gb Ethernet ASUS LANGuard

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220*6 – Impedance sense for front and rear headphone outputs – Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – ESS™ ES9023 DAC + RC4580 OP AMP – Supports up to 32-Bit/192kHz playback Audio Feature : – SupremeFX Shielding™ Technology – Gold-plated jacks – Optical S/PDIF out port(s) at back panel – Premium Japanese audio capacitors – Audio Cover

Windows® 10 64-bit

ATX Form Factor 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )

36 tháng

ASUS
